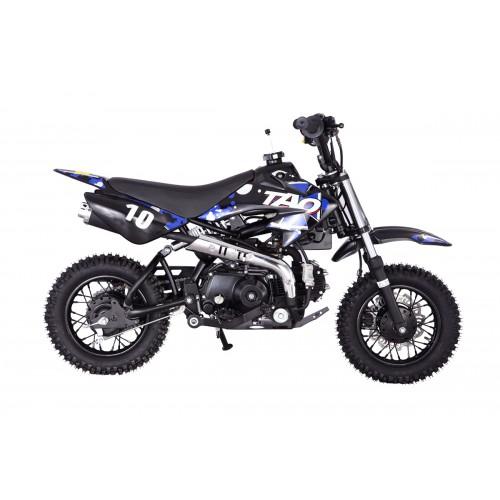

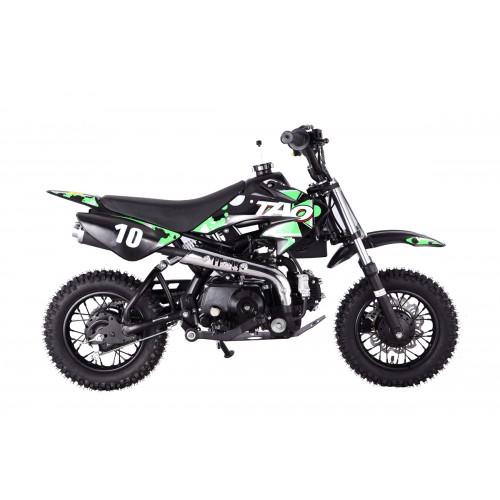

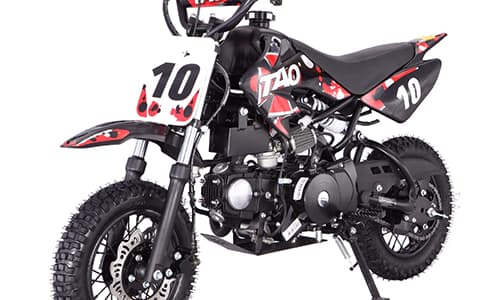

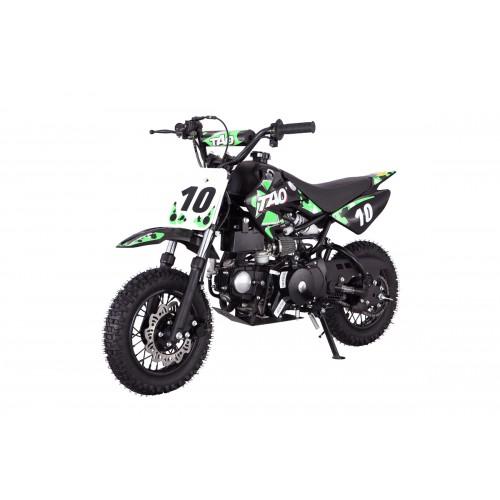

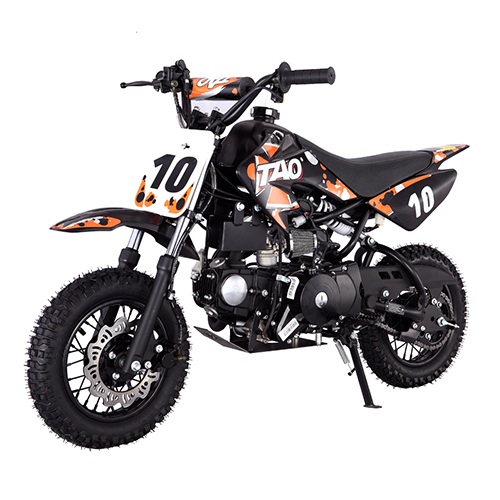

DB10

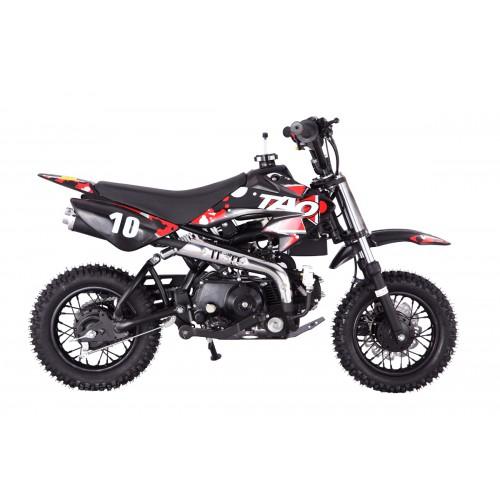

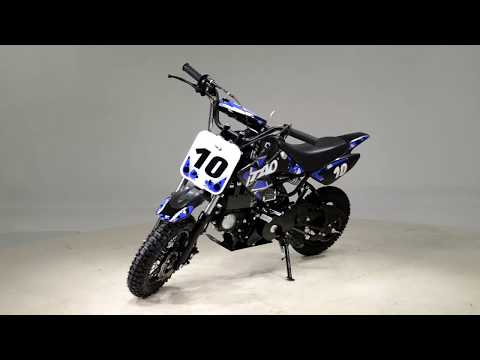

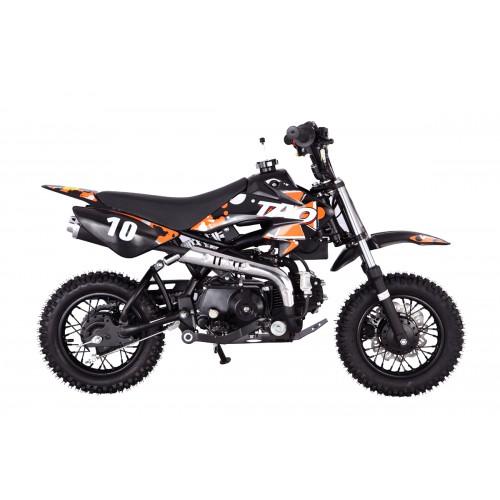

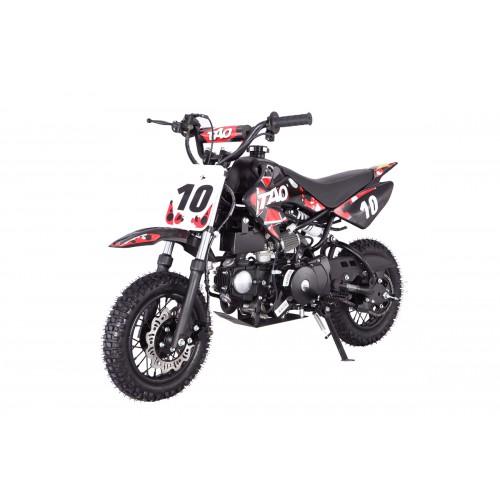

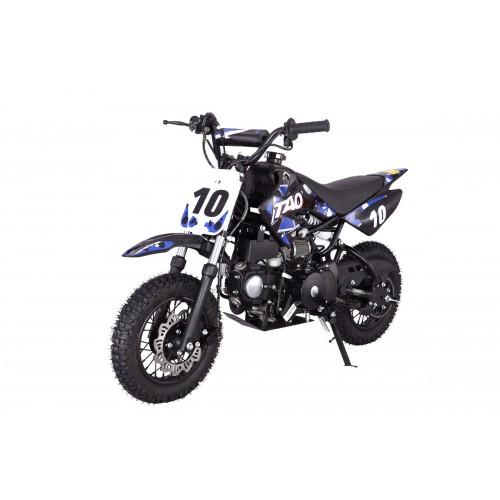

The Tao Motor DB10 Dirt Bike is a small-sized dirt bike designed for youth riders. Tao Motor’s best-selling value-priced, gas-powered youth dirt bike. The DB10 has been a staple in the Tao Motor lineup because of its dependability, power, and safety features. This Dirt Bike delivers unbelievable quality with its 4-stroke air-cooled engine with a convenient electric start. Easy to ride, designed for beginners learning how to ride Dirt Bikes. The Tao Motor DB10 is designed to fit your family's budget and needs.
Gallery
Features
- 4-stroke air-cooled engine
- Electric start
- Speed governor
- Fully automatic
- Adjustable rear shock
- 10-inch wheels
- Mono swing arm
- Comfortable seat
- Ergonomic handlebars
- Hydraulic disc brake
- Kickstand
- Hydraulic front shocks
- Washable air filter
Specifications
| Engine | |
|---|---|

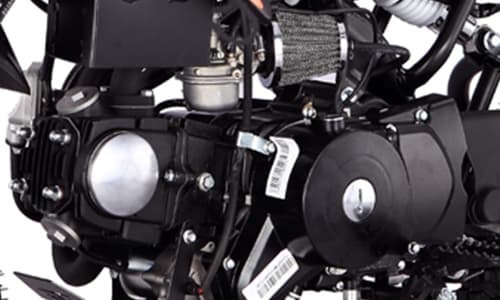

| Engine Type | 107cc, Air cooled, 4-stroke, single cylinder Automatic |
| Start Type | Electric Start |
| Transmission | Chain Drive |
| Engine Gear | Automatic |
| Ignition | CDI |
| Fuel Tank Capacity | 1 Gallon |
| Chassis | |
|---|---|
| Front Hand Brake | Hydraulic Disc |
| Rear Foot Brake | Drum |
| Tire Front | 2.75 - 10 |
| Tire Rear | 2.75 - 10 |
| Dimension | |
|---|---|
| Seat Height | 26 inches |
| Ground Clearance | 6.7 inches |
| Wheelbase | 36.8 Inches |
| Unassembled Crated Weight | 140 LBS |
| Vehicle Assembled Without Fuel | 117 LBS |
| Carton Size | 45 x 14 x 24 Inches |
Manuals
Manuals

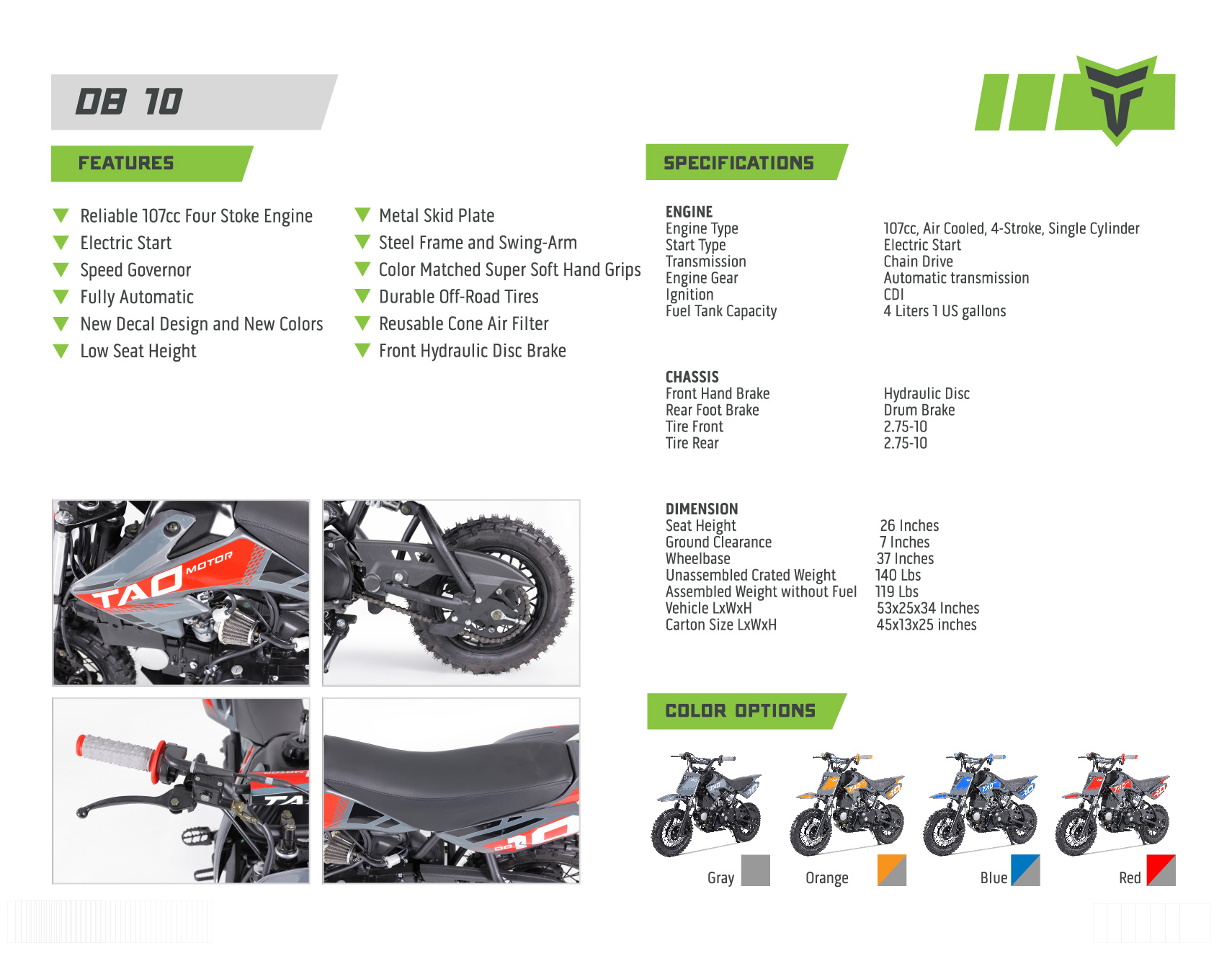

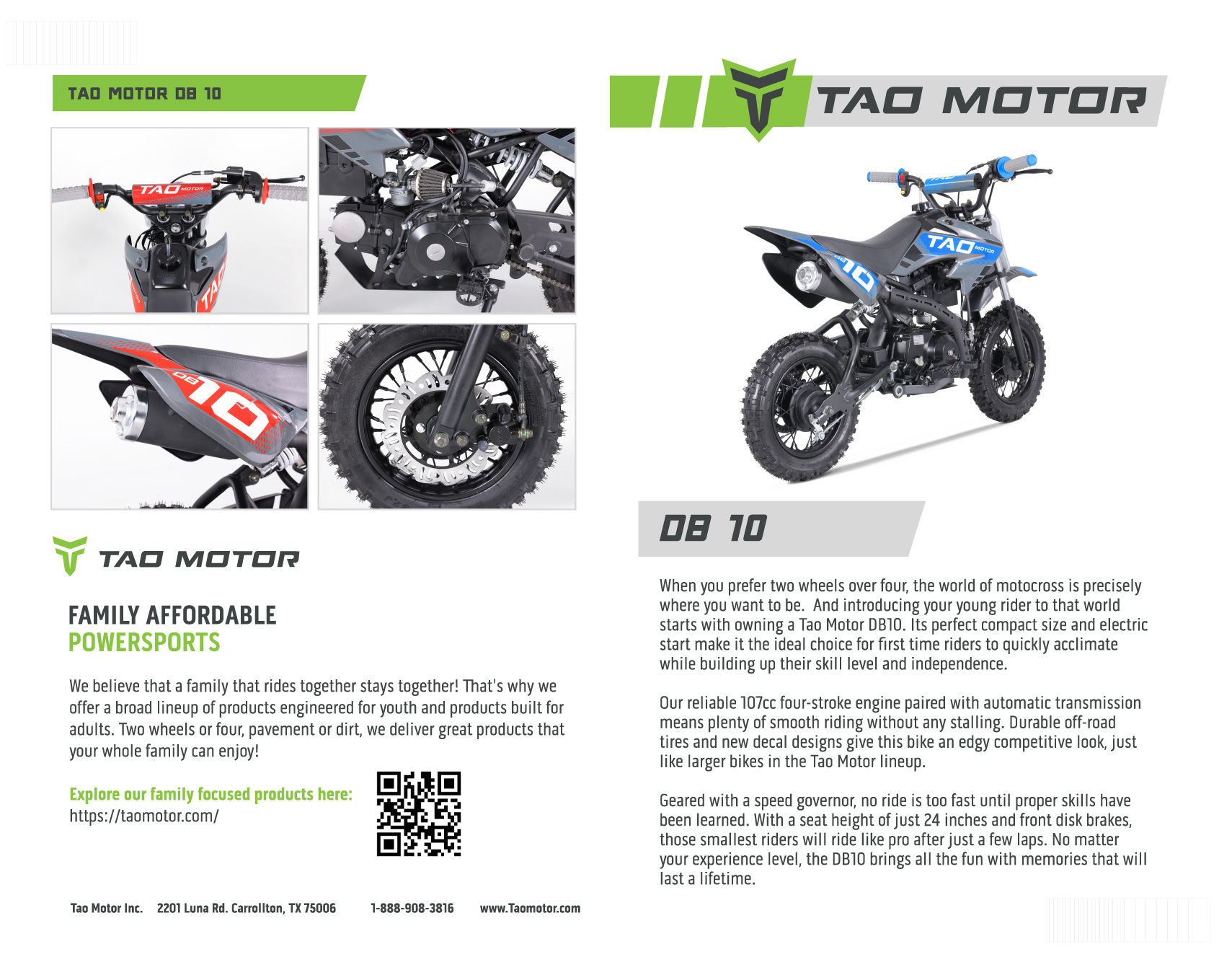

Brochure
